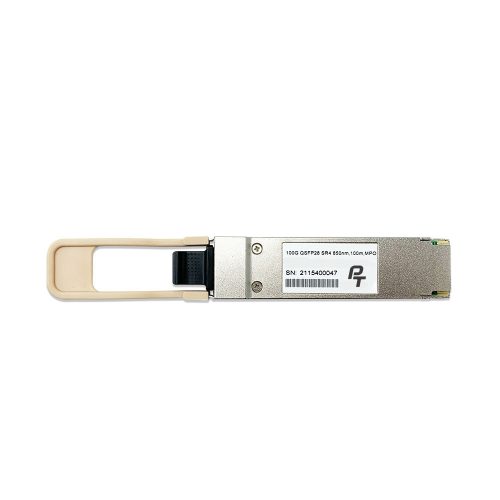

Rapide II™ 100GBase-SR4 QSFP28 850nm 100m MPO/MTP Transceiver Module

Description The transceiver is a Parallel 100Gb/s Quad Small Form-factor, Hot-Pluggable optical module. The module integrates 4 independent transmitters And 4 independent receivers inside. Four-channel 850nm VCSEL array, PIN array, amplifier, and driver are used in the module for compact size, low power consumption, and low cost. Each channel can operate at 25Gbps up to 100m using OM3 fiber. The transceiver is compliant with the industry standard SFF-8636 QSFP28 r specification. A digital diagnostic function is provided to monitor the working of the module. The electrical interface uses a 38-contact edge-type connector. The optical interface uses an 8 or 12-fiber MTP (MPO) connector. APPLICABLE DOCUMENTS AND SPECIFICATIONS Compliant with IEEE 802.3bm, 100G BASE-SR4 & 100G Ethernet Compliant with SFF-8665 (QSFP28 Solution) Revision 1.8 MPO/MTP Optical Connector QUALIFICATION Electrostatic Discharge (ESD) to the Electrical Pins Electrostatic Discharge (ESD) to the MPO/MTP Connector RoHS-3 compliance
