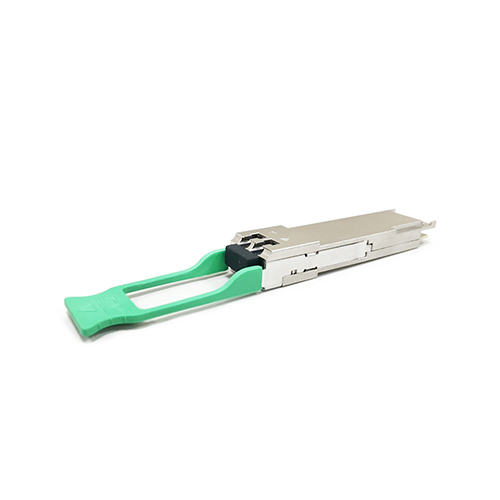

Rapide II™ 100GBase-CWDM4 QSFP28 1310nm 2km LC Transceiver Module
$51.49
$88.05
Description The transceiver consists of two sections: The transmitter section incorporates four CWDM DFB lasers. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8636 which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage. APPLICABLE DOCUMENTS AND SPECIFICATIONS Compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CDWM4 MSA, QSFP MSA, SFF-8665, SFF-8636 standards Electrical interface specifications per SFF-8636 QSFP28 MSA package with duplex LC connector QUALIFICATION Electrostatic Discharge (ESD) to the Electrical Pins Electrostatic Discharge (ESD) to the LC Connector RoHS-3 compliance
