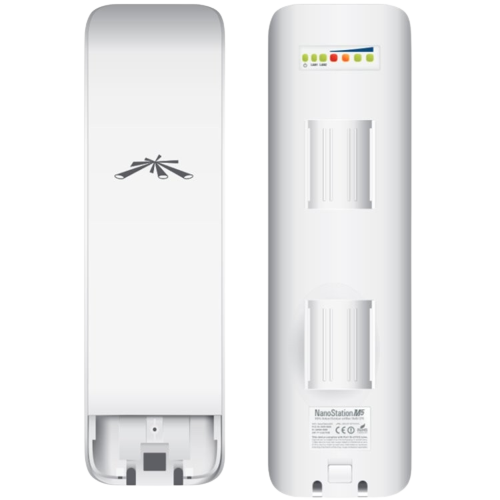

Ubiquiti NanoStation M2 (NSM2) Features Frequency 2.4 GHz Throughput 150 Mbps Range 13 km Gain 11 dBi  Ubiquiti NanoStation M2 – Wireless Access Point – AirMax (NSM2)  This wireless access point features an enhanced 400 MHz Atheros processor along with 32MB of SDRAM and 8MB of flash memory. SYSTEM INFORMATION MODEL NANOSTATIONM PROCESSOR ATHEROS MIPS 24KC, 400 MHZ MEMORY 32 MB SDRAM 8 MB FLASH NETWORKING INTERFACE 2 X 10/100 ETHERNET PORTS REGULATORY COMPLIANCE WIRELESS APPROVALS FCC PART 15.247, IC RS210, CE ROHS COMPLIANCE YES PHYSICAL / ENVIRONMENTAL SPECIFICATIONS POWER SUPPLY (POE) 24 V / 0.5 A MAX POWER CONSUMPTION 8 W GAIN 11 DBI POLARIZATION DUAL LINEAR ENCLOSURE CHARACTERISTICS OUTDOOR UV STABILIZED PLASTIC MOUNTING POLE MOUNTING KIT INCLUDED POWER METHOD PASSIVE POWER OVER ETHERNET (PAIRS 4, 5 ; 7, 8 RETURN) OPERATING TEMPERATURE -22 TO 167°F / -30 TO 75°C OPERATING HUMIDITY 5 TO 95% CONDENSING SHOCK AND VIBRATION ETSI300-019-1.4 ANTENNA GAIN 10.4-11.2 DBI CROSS-POL ISOLATION 23 DB MINIMUM MAX VSWR 1.6:1 BEAMWIDTH 55° (H-POL) / 53° (V-POL) / 27° (ELEVATION) DIMENSIONS & WEIGHT DIMENSIONS 11.57 X 1.22 X 3.15″ / 294 X 31 X 80 MM WEIGHT 14.1 OZ / 0.4 KG PACKAGING INFO PACKAGE WEIGHT 1.6 LB BOX DIMENSIONS (LXWXH) 12.677 X 4.803 X 3.307″ Category: Networking Switches
